品牌：云宇牌
所在地区：山东
型号：CPC70
起订：1条
供应：10条
| 所在地区 | 山东 |
|---|---|
| 型号 | CPC70 |
| 产品型号 | 30CHYa F30H2000 |
| 品牌 | 云宇 |
| 加工定制 | 是 |

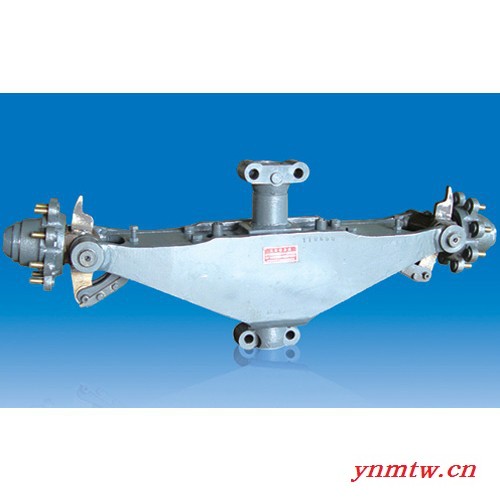

结构特点：Structural features
◆采用横置油缸助力转向，使转向更加轻便，灵活可靠。
◆ More convenient, flexible and reliable power-assisted steering through horizontally-held oil cylinder.
◆ 该桥采用CAD设计，具有结构紧凑，刚性好，重量轻，抗振性能好等特点。
◆ A series of features such as compact structure, sufficient rigidity, light weight and reliable resistance to shock of such an axle are realized through CAD design.

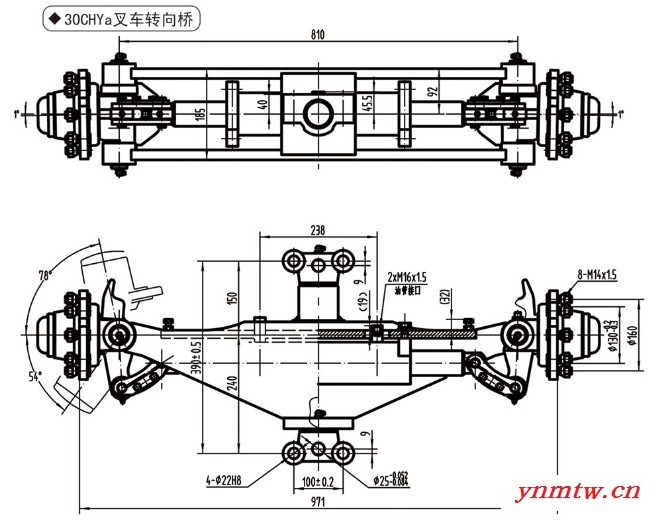

主要连接尺寸
Main connection dimensions
技术参数：Technical Parameters
| 型号 Model | 30CHYa | F30H2000 |
| 转向油缸内径 Inside diameter of steering cylinder | ∮70 | |
| 活塞杆直径 Diameter of piston rod | ∮50 | |
| 单向行程 Single stroke | 99mm | 106mm |
| 进油口距 Distance between two neighboring oil inlets | 238mm | |
| 进油口内螺纹 Inside screw thread of oil inlet | 20M16×1.5 | |
