品牌：云宇牌
产地：山东
品牌：云宇
起订：1条
供应：50条
| 产地 | 山东 |
|---|---|
| 品牌 | 云宇 |
| 型号 | ZL60G装载机驱动桥 |
| 商品品牌 | 云宇 |
| 商品型号 | ZL60G |
结构特点：Structural features
◆驱动桥采用两级减速结构。
◆ Two-stage decelerating structure is adopted for the drive axle.
◆主传动为螺旋锥齿轮，承载能力大，效率高。
◆ The spiral bevel gears with great load-carrying capacity and high efficiency are adopted for main drive.
◆轮边为行星减速结构。
◆ The hub includes the planetary decelerating-mechanism.
◆主减部分装有普通锥齿轮差速器，结构简单、差速灵活。
◆ The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.
◆桥壳材料为铸钢，刚性好。
◆ The cast steel with adequate rigidity serves as material for the axle housing.
◆制动器为钳盘制动，制动力矩大。
◆ The brake in clamp-disc braking mode has great braking moment.
◆驱动桥适用于ZL60装载机和220马力拖拉机。
◆ The drive axle is suitable for ZL60 loader and 220 horsepower tractor.

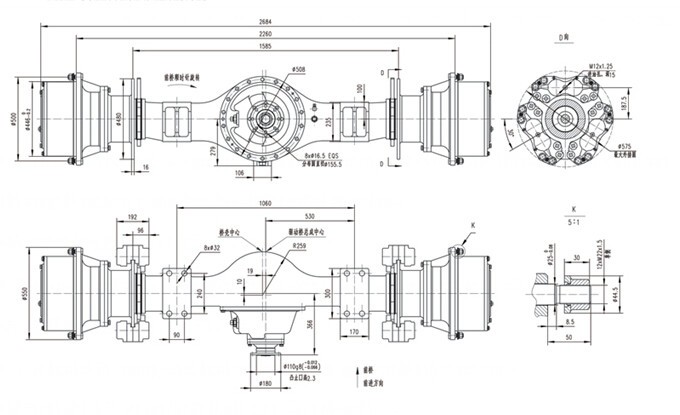

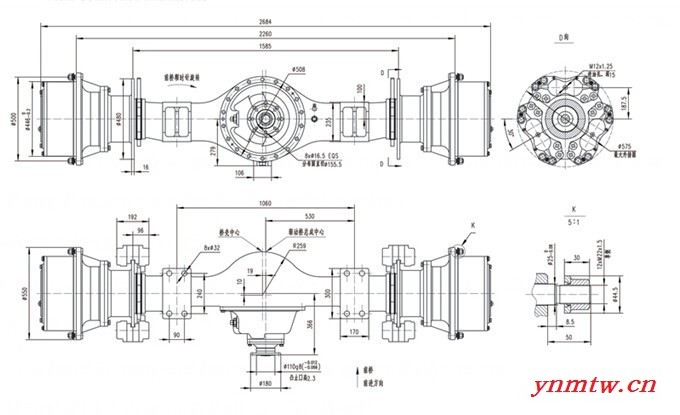

主要连接尺寸
Main connection dimensions
技术参数：Technical Parameters
主传动比 Main transmission ratio | 3.7 | |
轮边减速比 Wheel-end reductor ratio | 5.6 | |
总传动比 Total transmission ratio | 20.72 | |
桥荷 Axle load | 33000Kg | |
输入扭矩 Input torque | 6200N.m | |
制 动 器 Brake
| 缸径 Bore | φ75mm |
缸数 Number of Cylinder | 4 | |
油管接口 Oil-tube connector | M12×1.25 | |
制动油压 Braking oil pressure | 9.8MPa | |
制动半径 Braking radius | 187.5mm | |
制动力矩 Braking moment | 11500N.m/只 | |
