品牌：云宇牌
产地：山东
品牌：云宇
起订：1条
供应：50条
| 产地 | 山东 |
|---|---|
| 品牌 | 云宇 |

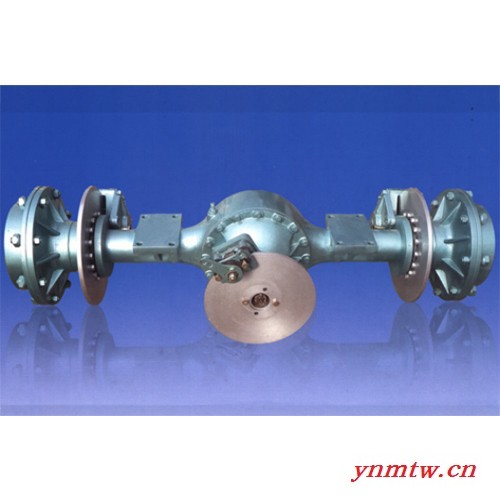

| 型号 | ZL15J -1装载机驱动桥 |
| 商品品牌 | 云宇 |
| 商品型号 | ZL15J -1 |
结构特点：Structural features
u 驱动桥采用两级减速结构。
u Two-stage decelerating mechanism is adopted for the drive axle.
u 主传动为螺旋锥齿轮，承载能力大，效率高。
u The spiral bevel gears with great load carrying capacity and high efficiency are adopted for main drive.
u 轮边为行星减速结构。
u The hub is planetary decelerating structure.
u 主减部分装有普通锥齿轮差速器，结构简单，差速灵活。
u The main reducer is equipped with the common bevel-gear differential with simple structure and flexible differential function.
u 桥壳材料为铸钢，刚性好。
u Cast steel with adequate rigidity serves as the material for the axle housing.
u 驱动桥有两种旋向，可依用户需要供货。
u The drive axles with either of the two turning directions are provided in accordance with users’ requirements.
u 制动器为钳盘制动，制动力矩大
u The brake in clamp-disc braking mode has great braking moment
u 在主传动位置增加驻车制动器，制动安全可靠。
u The parking brake is added in the main drive position to realize safe and reliable braking.
主要连接尺寸
Main connection dimensions
技术参数：Technical Parameters
主传动比Main transmission ratio | 6.667 | |
轮边传动Hub transmission ratio | 3.23 | |
总传动比Total transmission ratio | 1.53 | |
**大桥荷Maximum axle load | 8500Kg | |
**大输入扭矩Maximum Input torque | 900N.m | |
制动器 | 缸 径Cylinder diameter | 75mm |
缸 数Number of cylinders | 2 | |
进油孔Oil inlet | M14×1.5 | |
制动油压Braking oil pressure | 9.8Mpa | |
制动半径Braking radius | R167mm | |
单钳制动力矩Braking moment | 4337N.m | |
