产地：福建
产品认证：ISO9001
起订：1台
供应：1000台
发货：10天内
| 产地 | 福建 |
|---|---|
| 产品认证 | ISO9001 |
| 额定起重量 | 20000 |
| 货叉长度 | 1600mm |
| 类型 | 燃料叉车 |
| 起升高度 | 3000mm |
| 行走方式 | 内燃式叉车 |
| 用途 | 搬运 |
| 载重量 | 20000kg |
| 执行标准 | 国标 |
| 自重 | 24500kg |
| 品牌 | 福大机械 |
| 型号 | FDM8200T |
| 加工定制 | 是 |
| 货叉位 | 咨询客服 |

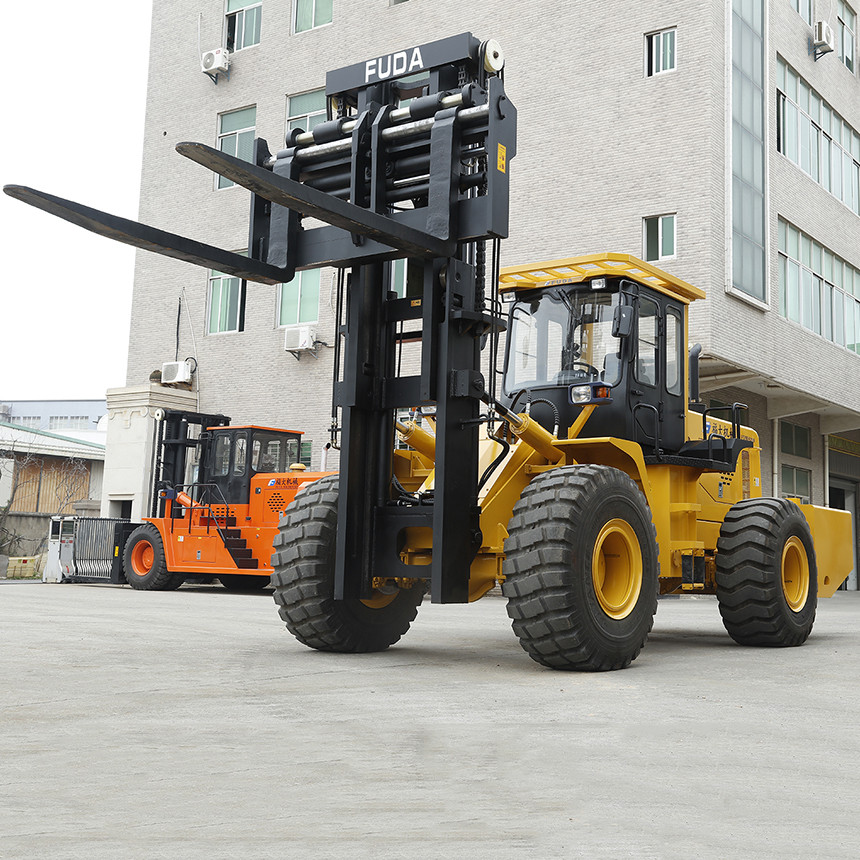

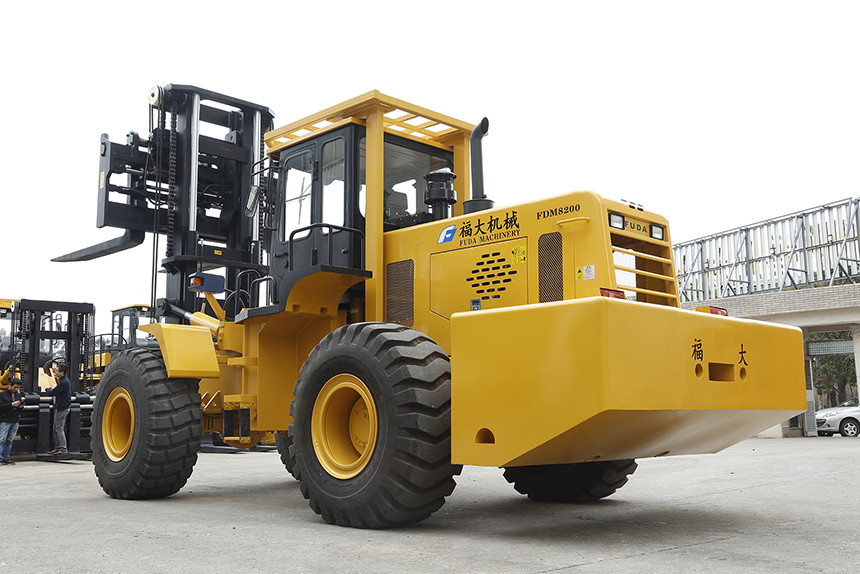

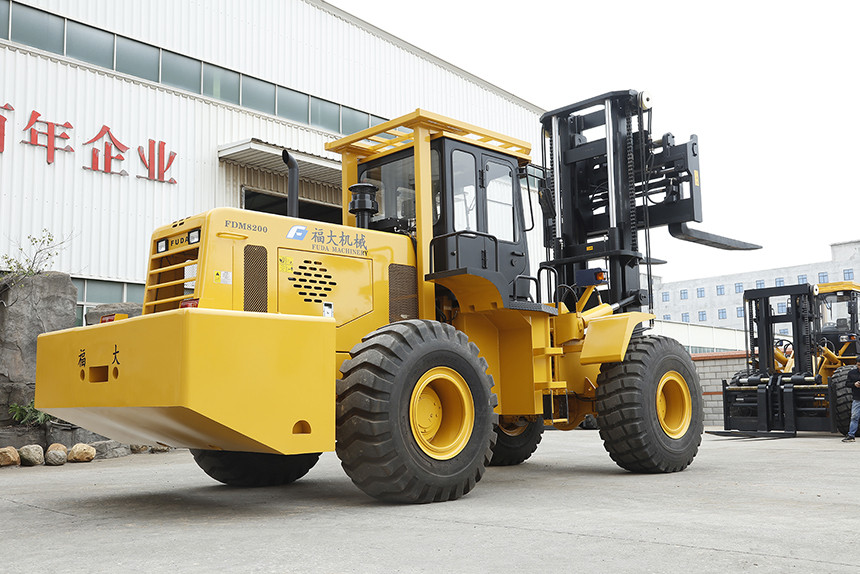

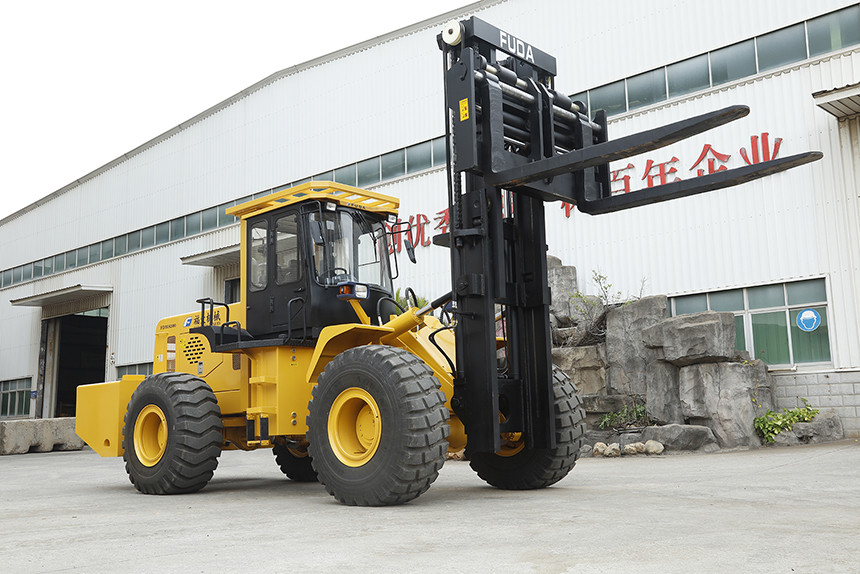

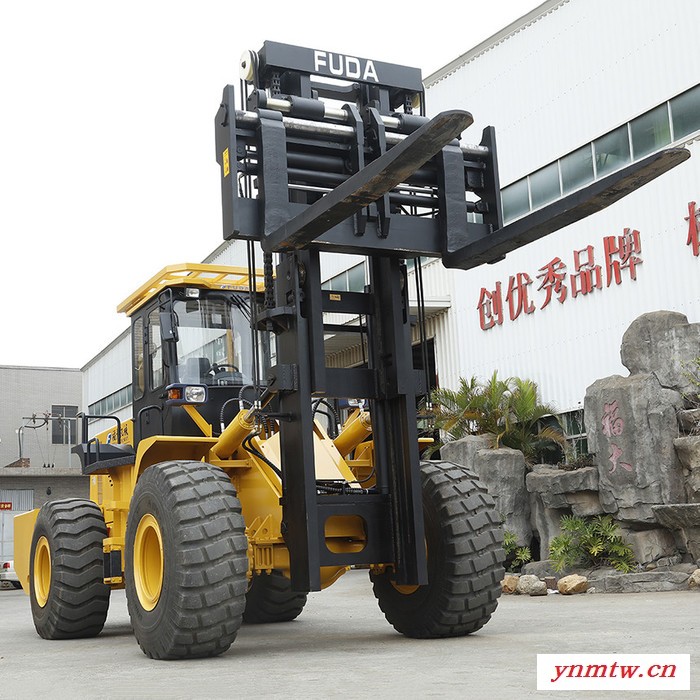

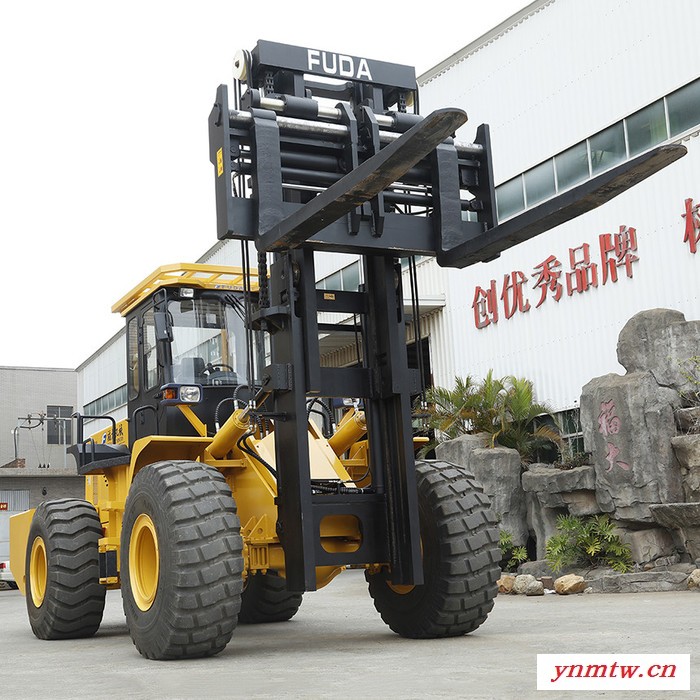

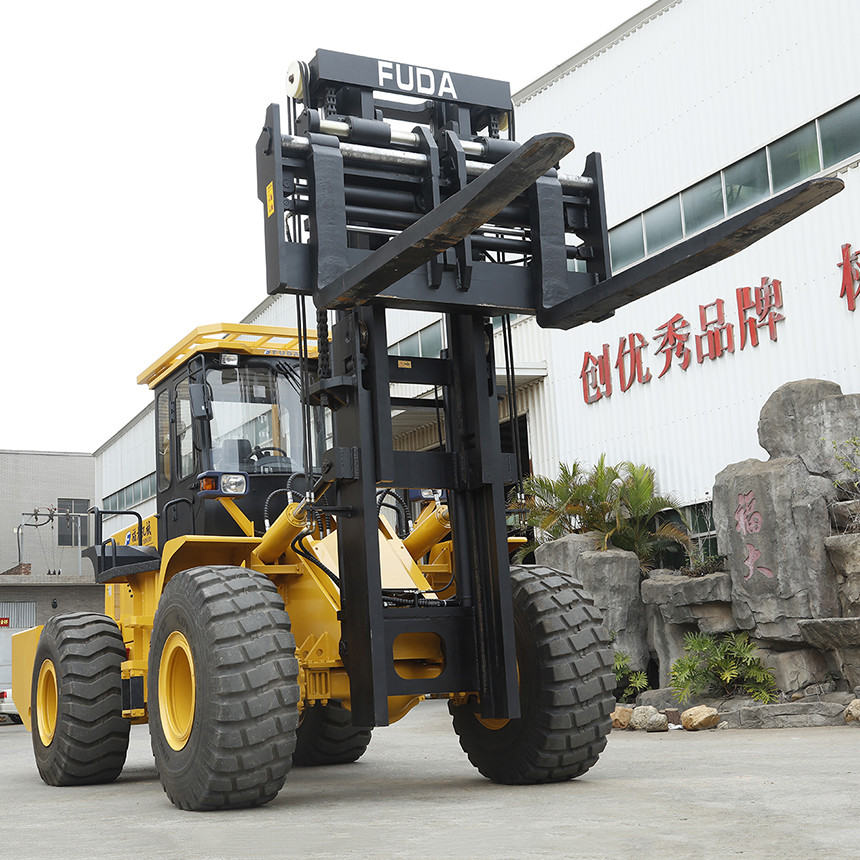

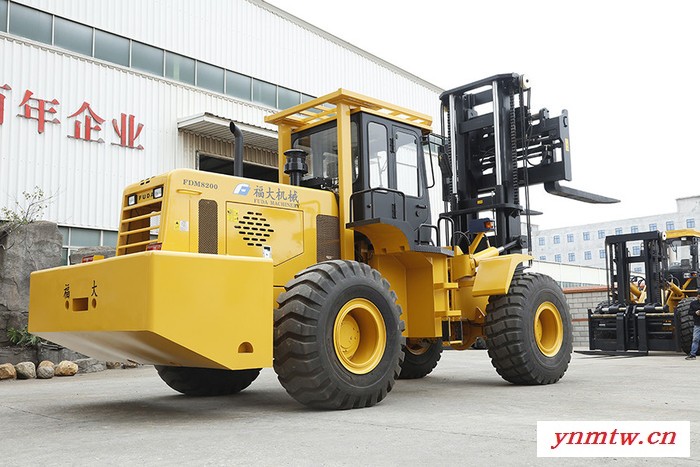

福大越野叉车FDM8200T
| 技术性能参数specification | |||||||||
| 概要General | 制造Manufacture |
| 福大机械FUDA | ||||||
| 型号Model |
| FDM8200T | |||||||
| 动力形式Power type |
| 柴油Diesel | |||||||
| 额定载荷Rated capacity | kg | 20000 | |||||||
| 载荷中心距Load center | mm | 600 | |||||||
| 尺寸Dimensions | 起升高度Lift height | mm | 3000 | ||||||
| 自由起升高度Free lift height | mm | 100 | |||||||
| 货叉尺寸Fork size | mm | 1600×180×100 | |||||||
| 货叉间距Fork distance | Min./Max. | mm | 400/1480 | ||||||
| 门架倾角Mast tilt angle | 前/后 | deg | 6/8 | ||||||
| 前悬距Front overhang | mm | 1100 | |||||||
| 外形尺寸Overall dismensions | 总长Length to face of fork | mm | 8450 | ||||||
| 总宽Overall width | mm | 3160 | |||||||
| 门架不起升高度Mast lowered height | mm | 3350 | |||||||
| 门架起升高度Mast extended height | mm | 4850 | |||||||
| 安全架高度Overhead guard height | mm | 3450 | |||||||
| 最小转弯半径Turning radius | mm | 7800 | |||||||
| 最小直角通道宽度Min.right angle aisle width | mm | 8500 | |||||||
| 性能Performance | 空载/满载 no load/full load | 行驶速度Travel speed | Km/h | 34/32 | |||||
| 举升速度Lifting speed | mm/sec | 320/270 | |||||||
| 爬坡度Max.grade ability | o | 22 | |||||||
| 最大牵引力Max.Pull force(full load) | KN | 180 | |||||||
| 自重Self weight | kg | 24500 | |||||||
| 底盘Chassis | 轮胎Tyres | 前轮Front |
| 2×26.5-25 | |||||
| 后轮Rear |
| 2×26.5-25 | |||||||
| 轮距Tread | 前轮Front | mm | 2380 | ||||||
| 后轮Rear | mm | 2380 | |||||||
| 轴距Wheelbase | mm | 3710 | |||||||
| 最小离地间隙Min.Ground clearance(空载/满载no load/full load) | 门架Mast | mm | 250/240 | ||||||
| 车架frame | mm | 260/250 | |||||||
| 动力单位与控制Drive unit &control | 蓄电池Battery | V/AH | 24/100×2 | ||||||
| 发动机Engine | 型号Model |
| D10.24T21 | ||||||
| 制造商Manufacture |
| HANG FA | |||||||
| 额定功率Rated output | Kw/rpm | 175/2200 | |||||||
| 额定扭矩Rated torque | N.m/rpm | 960/1300-1600 | |||||||
| 缸数No.of cylinder |
| 6 | |||||||
| 缸径×行程Bore*stroke | mm | 126×130 | |||||||
| 排量Displacement | L | 9.726 | |||||||
| 油箱容量Fuel tank capacity | L | 220 | |||||||
| 双变Transmissions | 类型Type |
| 液力Hydraulic | ||||||
| 档位Shift | 前后Front/rear |
| 2/1 | ||||||
